PCB Assembly Testing

PCBA testing is a very important procedure to make sure PCB Assembly quality after assembly. Before out of our factory, every piece of board needs strict testing, and  in general, Eastwin PCB Tests include the following 4 procedures:

1. Visual inspection after SMD Process

Each SMT lines have one QC person to check the SMD solder quality after assembly.This step is visual inspection, here to verify if any parts loss or incorrect parts are used via checking the BOM list. After finished the visual inspection, then move to second test- AOI testing.

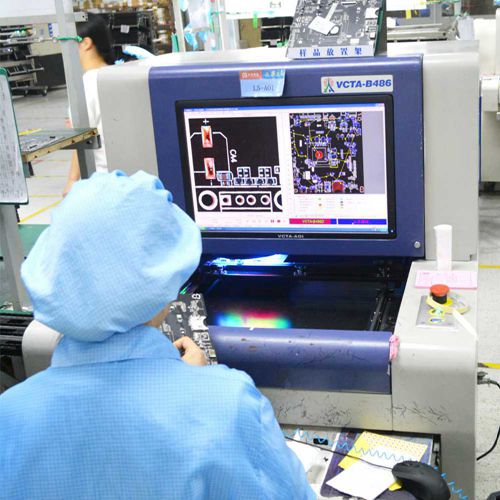

2. AOI Testing(X-ray Testing for BGA package)

After the first step of checking components with pads, we start to assemble SMD parts.

And will do AOI testing after all the SMD parts finish. AOI test means Automatic Optic Inspection, it is used mostly in Assembly industry, and it can test many defects:

  • Components offset
  • Components polarity error
  • Less solder paste
  • No solder paste
  • Cold solder
  • Soldering Joints





For BGA package component, we additionally do X-ray test.

Now more and more companies use BGA package(Ball Grid Array package) ICs for their design, but BGA raises the higher requirement to soldering, so the test after assembly is very important, X-ray is a  professional machine to check the inner solder problem of BGA.



3. Free Function Testing with test jig

If above testing is passed, then the next step is functional test. For 100% make sure the quality, we do functional test for customers free of charge, provide free testing jig and free program burning.The testing method is usually offered by customers; but if customers couldn’t provide it, our engineer will design a test method for the board as well.



4. Final visual inspection

The last step is visual inspection in QC department before cleaning board, we use a magnifier to check the soldering and direction of components.
